CH3515 – Tough productivity boost 06:14

We were contacted by one international customer about improving productivity in a machine cell which was a bottle neck in their production. After analysis of the said cell, one of the improvement possibilities was this facing operation with heavy interruptions. It was identified as an H35 operation and the new CH3515 was the obvious choice. The goal was to achieve 100 parts tool life to have the same change cycle as other tools. It was easily achieved and the success was total. Cycle time was reduced with 40 s per part, which results in 11 000 hours of saved machining time. Annually!

Workpiece
Component: Gear
Material: 20MnCr5, SMG-H3
Hardness: 60-62 HRc
Surface: Pre-machined

Conditions
Operation:
Facing of gear teeth, heavy interruptions

Insert
CNGA120412S-02020-L1-B

Cutting speed: 180 m/min
Feed rate: 0.06 mm/rev
Depth of cut: 0.10 mm
Cutting length: 12 mm/part
Time in cut: 20s

Result
Tool life
CH3515, 100 parts/edge,

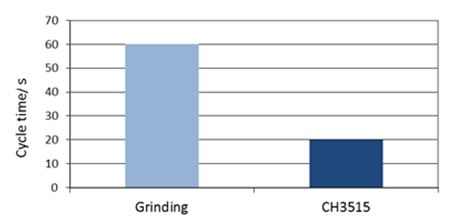

40s saved per produced part compared to grinding.



For more information, please contact your local Seco representative, or our Advanced material (PCBN/PCD/CERAMIC) team.

Author: Stefan G Larsson Product Specialist SECOMAX PCBN/PCD/CERAMIC SECO TOOLS AB 737 82 Fagersta, Sweden Office +4622340572 Mobile +46761367807 email:stefan.g.larsson@secotools.com
